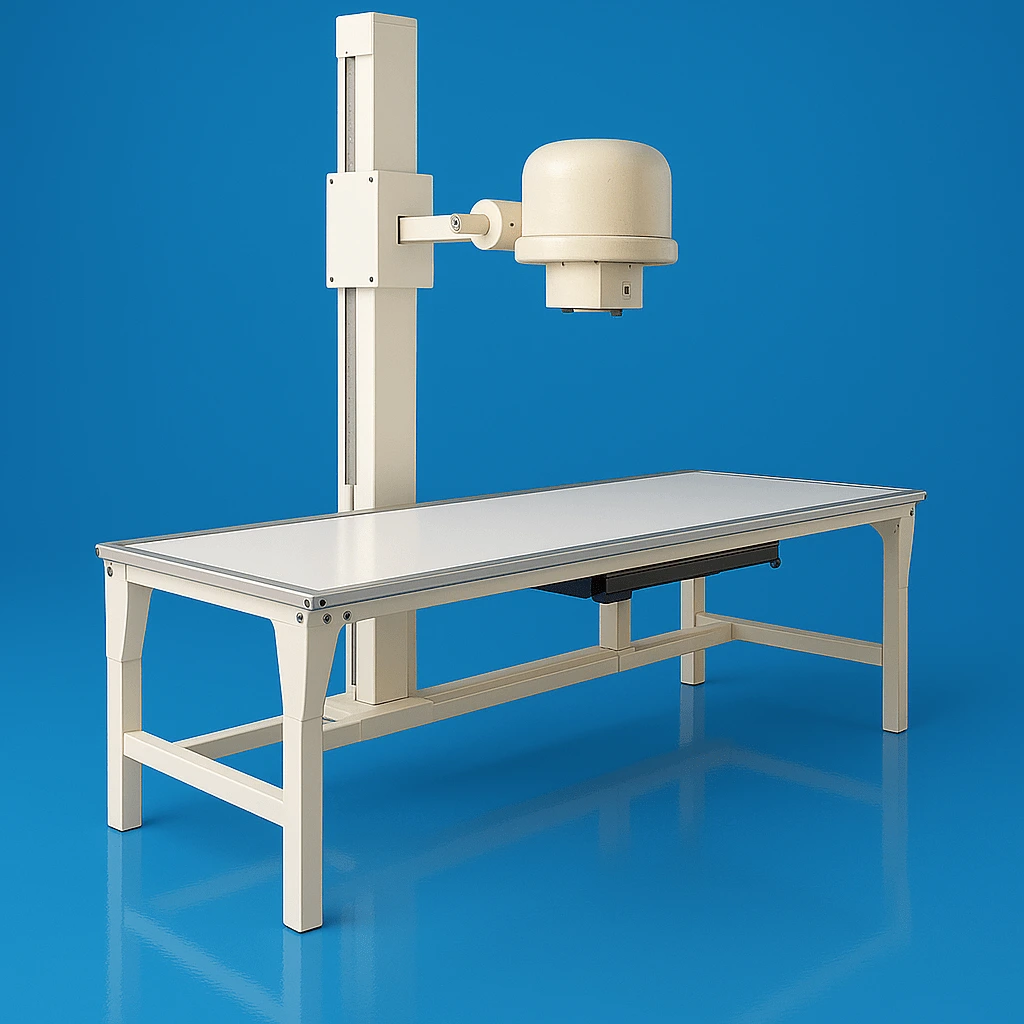

Basic Radiography X-Ray Unit (BRXU)
The BRXU Model is a cost-effective, compact, floor-mounted X-ray radiographic unit compatible with all makes and types of X-ray generators. Designed specifically for nursing homes, diagnostic centres, and facilities with limited space, this unit offers functionality, durability, and ease of operation.
Key Features :
- Space-Saving Design : Sleek, steel-fabricated structure ideal for small setups.
- Patient Positioning Ease : Tabletop with centre line marking for accurate patient centering.
- Smooth & Effortless Movement : Bucky and column glide seamlessly along the table length with a reliable mechanical lock.
- Enhanced Strength & Safety : Aluminium railings with provision for a compression band.
Technical Specification :
| Model | BRXU |
|---|---|
| Table Top | |
| Material | White sumnica 6mm Thk. |
| Table top to Film distance | 85 mm |
| Table top dimensions | 1830 L x 600 W |
| Table Top Radiolucent Area | 1750 x 540 (mm) |
| Load | 150 Kg |
| Bucky Device Unit | |
| Longitudinal Bucky Travel | 505 mm (20”) |
| Locks | Mechanical (Electromagnetic optional) |
| Max. Cassette Accommodation | Max 43 cm (17”) x 43 cm (17”) |
| Grid Movement | Reciprocating |
| Grid (Standard) | 17 1/4 x 18 7/8 60 Lines 6:1 Ratio |
| Electrical Requirement | Single Phase 230V +/- 10%. 50/60 Hz |
| Tube Stand | |
| Tube Column | Integrated Table & Tube Stand |
| Vertical Long. Travel | 1390 mm (54”) |
| Weight Balancing Travel | Min 203 mm (8”) x 1016 mm (40”) max |
| Capacity | Up to 40 Kg |
| Dimension | |
| Size | 1830 L x 8800 W x 2030 H (mm) |
| Weight | |
| Weight | Approx Kg. |
