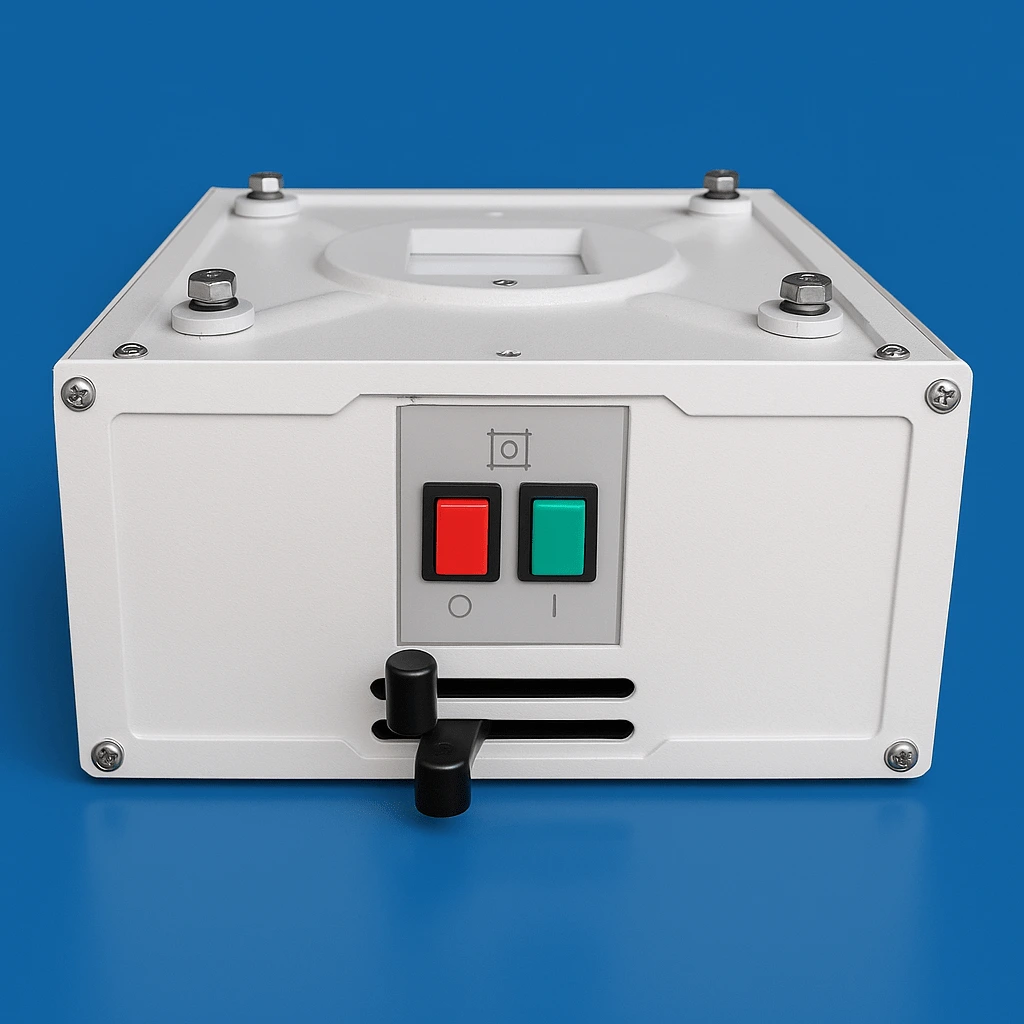

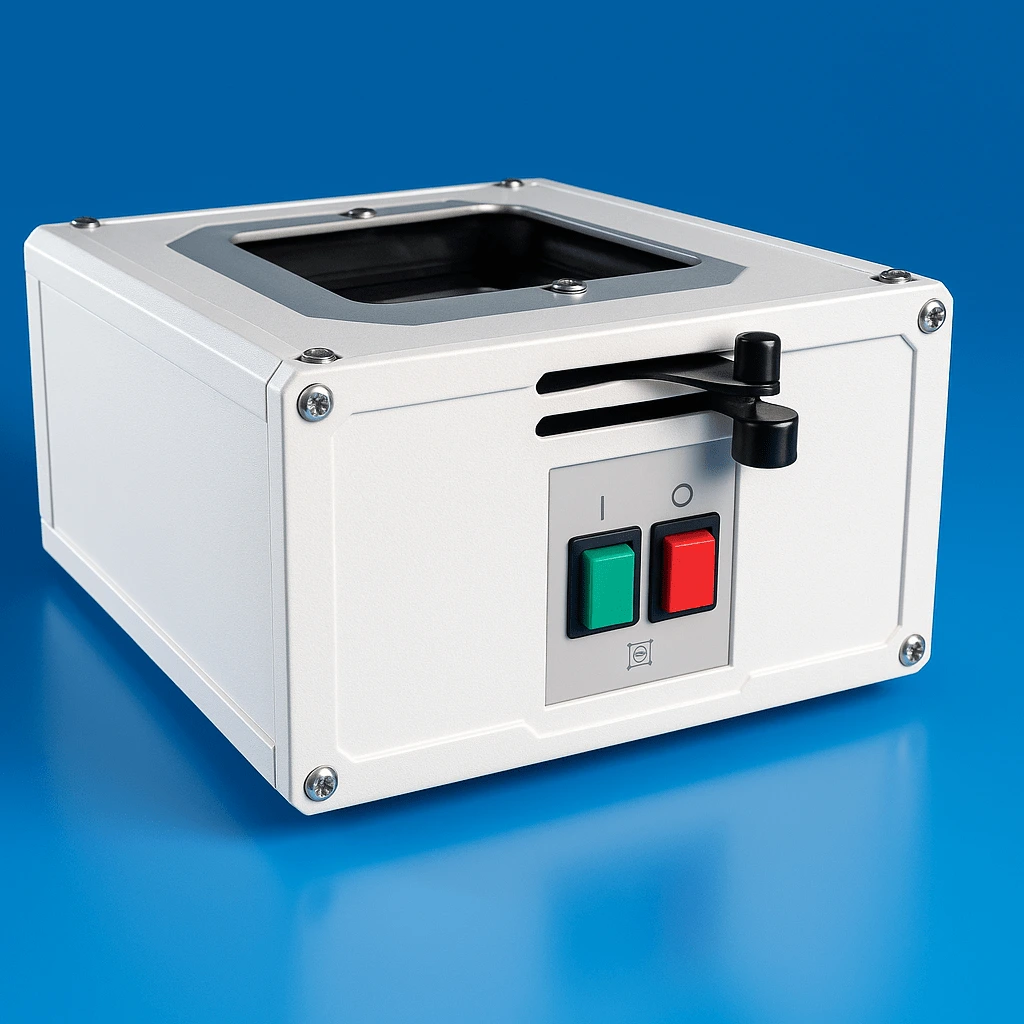

Limit-X Nano Collimator
The Limit-X Nano Model is a manual, single-leaf parallel shutter collimator designed for mobile and portable X-ray units. Its lightweight and compact design makes it ideal for quick, accurate radiography in hospital wards, field operations, or remote locations.
Equipped with a calibrated field size scale and SID measuring tape, it ensures precise imaging alignment for enhanced diagnostic quality.
Key Features :
- Filter IN/OUT Facility for flexible imaging requirements
- SID Measurement with retractable tape for quick distance checks
- Calibrated Field Size Scale for accurate collimation
- Optional Electronic Timer – 30 sec (+/- 10 sec) auto-off
- Compatible with portable, mobile, and RF X-ray units
- Simple, Aesthetic & User-Friendly design
- Fail-Proof Link Mechanism for consistent performance
- Front Lever Knob Operation for easy adjustments
Applications :
- Portable X-ray Systems
- Mobile X-ray Units
- RF X-ray Units
- Field & Ward Radiography
Technical Specification :
| Application | Manual-driven adjustable Limit-X for radiography |
|---|---|
| Maximum kVp | 100 kVp |
| Min / Max field size | 0 x 0 / 43 x 43 cm at SID 100 cm |
| Projection lamp | LED 5W |
| Electrical requirement | 12 / 24 VAC 5A |
| Lamp timer (Optional) | Auto off by timer set for 30 Sec (+/- 10 Sec) |
| Tube focal distance (Source to LX Mtg Surface) | 80 mm |
| Leakage radiation | Well within the permissible limit (114mR/1mGy) |
| Filter | 1.2mm Al equivalent |
| SID Measurement | Retractable Measuring Tape |
| Dimension | 180 D x 160 W x 94 H mm |
| Weight (Max.) | 2.300 Kg |
