X-Ray Collimator (Limit-X STD)

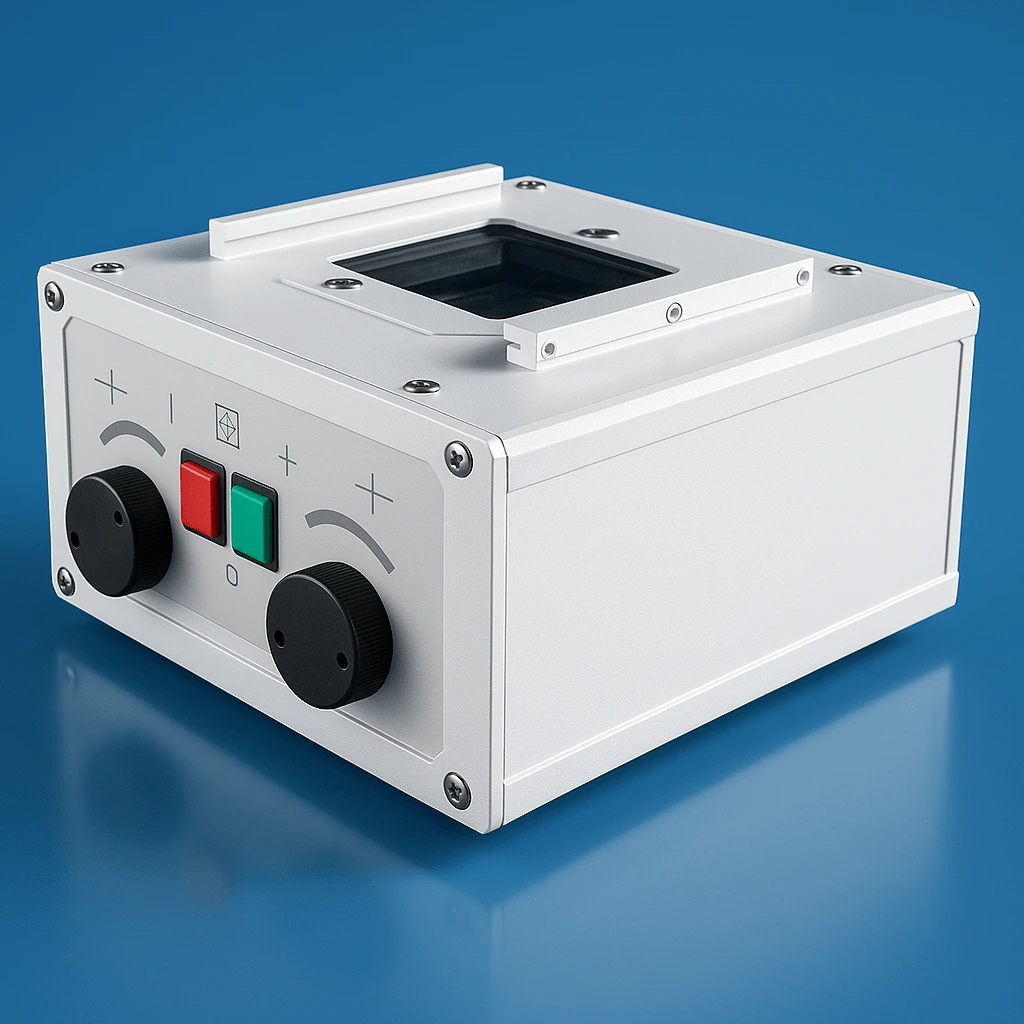

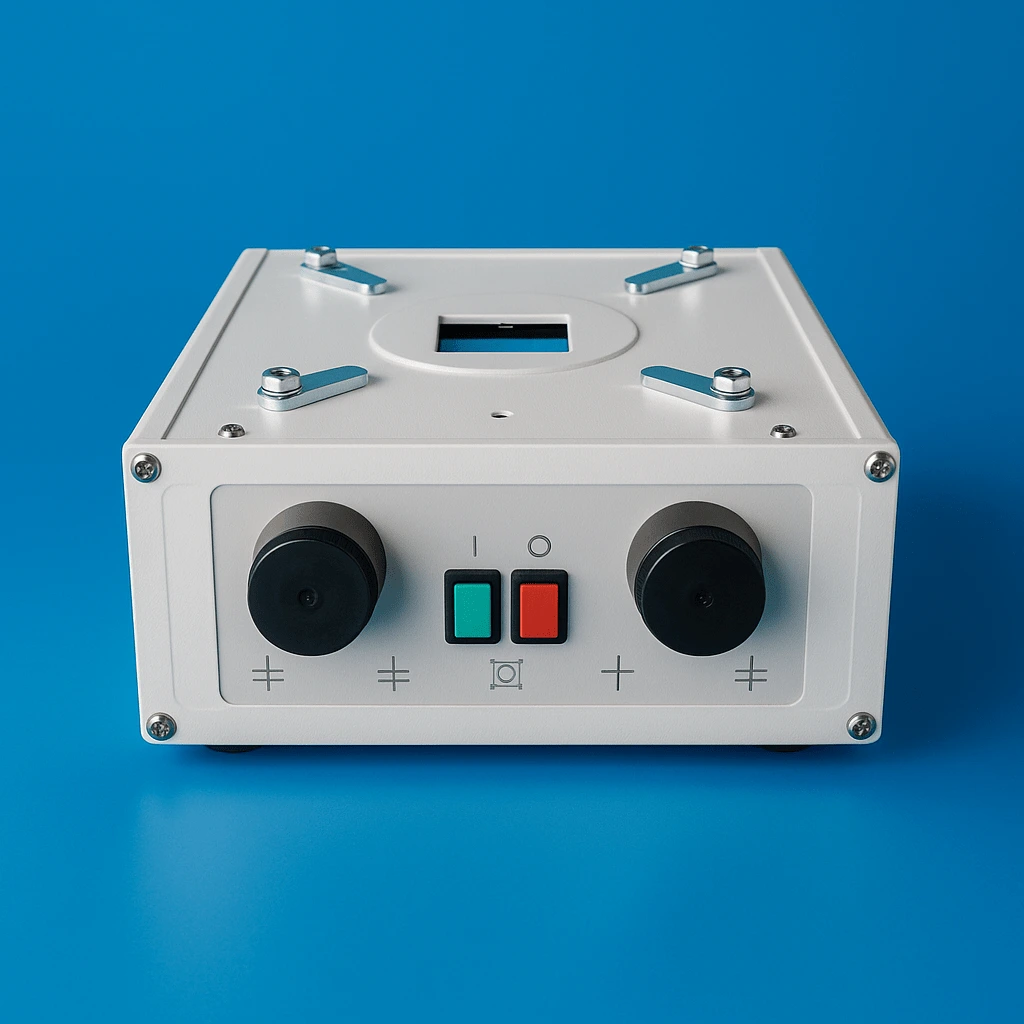

The Collimator-5.LX (STD) – Limit-X manual version is a single-leaf parallel shutter, square field manual collimation system designed for precise and efficient x-ray beam collimation. With its lightweight, compact design and compatibility with all types of x-ray tube units, it is ideal for a wide range of general radiography applications.
Its primary function is to collimate the radiation beam from the x-ray tube assembly to match the exact size of the object being examined. The unit features smooth manual adjustment via front panel knobs, ensuring ease of use in both under-couch and over-couch operations.
Key Features :
- Manual shutter movement with a simple and aesthetic link mechanism.
- Ideal for all types of RF x-ray units.
- External mirror angulation adjustment for precision.
- Electronic 30-second timer for light field activation simulating the x-ray field.
- Adjustable lamp position & filament for optimal light projection.
- Two front panel knobs for easy manual shutter control.
- Versatile mounting – suitable for both under-couch and over-couch work.
Applications :
- General radiography
- Diagnostic imaging centers
- Hospital radiology departments
- Under-couch & over-couch radiographic systems
Technical Specification :
| Application | Manual-driven adjustable Limit-X for radiography |
|---|---|
| Maximum kVp | 100 kVp |
| Min / Max field size | 0 x 0 / 43 x 43 cm at SID 100 cm |
| Projection lamp | LED 5W |
| Electrical requirement | 12 / 24 VAC 5A |
| Lamp timer (Optional) | Auto off by timer set for 30 Sec (+/- 10 Sec) |
| Tube focal distance (Source to LX Mtg Surface) | 80 mm |
| Leakage radiation | Well within the permissible limit (114mR/1mGy) |
| Filter | 1.2mm Al equivalent |
| SID Measurement | Retractable Measuring Tape |
| Dimension | 180 D x 160 W x 94 H mm |
| Weight (Max.) | 2.300 Kg |
