X-Ray Par Speed Bucky (PSXB)
The PSXB (Standard) Bucky is a cost-effective, aesthetically designed unit engineered for diagnostic X-ray machines. It is fitted into X-ray tables to securely hold film cassettes and features an oscillating grid mechanism to filter unwanted secondary rays, ensuring clearer and sharper X-ray images.
Its continuous motion keeps the lead strips invisible on the X-ray picture, providing superior image quality. Designed for outstanding compatibility, it works seamlessly with radiography tables and wall stands from various manufacturers.
Key Features :

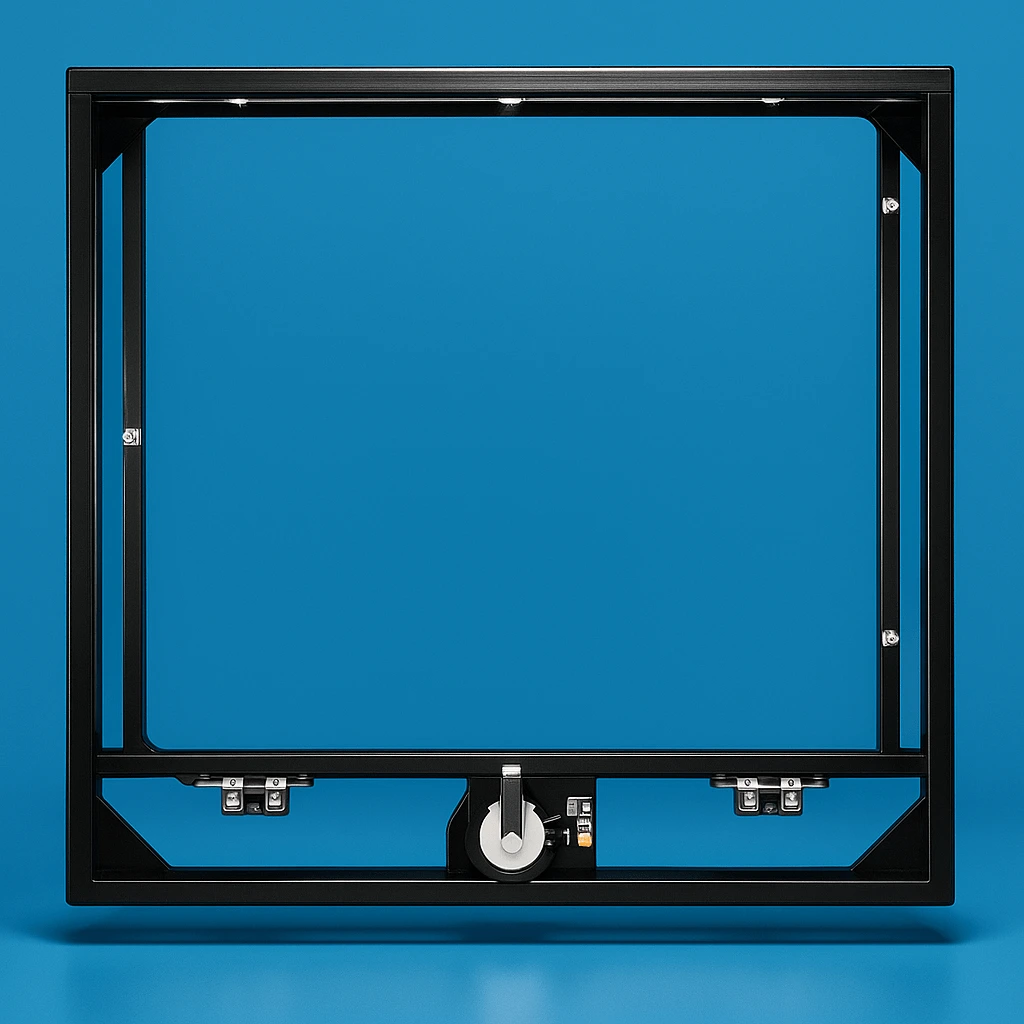

Main Body
Grid Frame

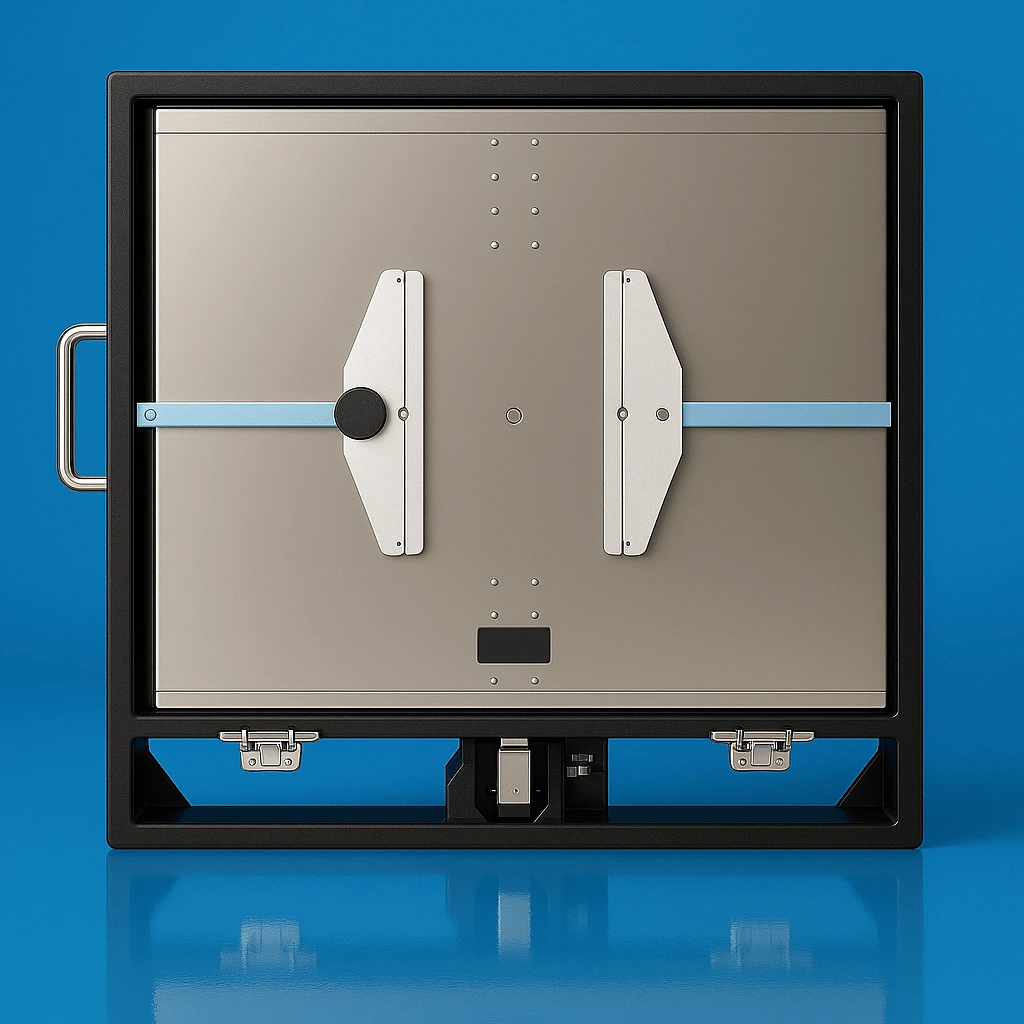

Cassette Tray
Oscillating Mechanism
- Durable chassis made from high-quality CRCA material
- Mounting brackets for easy table installation
- Smooth cassette tray insertion via precision tracks
- Lightweight and easy to handle
- Mounted with nylon bush and guide bar for smooth oscillation
- Firm clamping with nylon blocks for stability
- Stainless steel (SS 202) with top matt finish
- Auto-centering mechanism for accurate cassette placement
- Knob lock & rubber holders for a firm grip
- Additional support block for vertical positioning
- Fits all standard cassette formats up to 430 mm (17”) × 430 mm (17”) × 16 mm (5/8”) thick
- Dual-side tray insertion for convenience
- Motor-driven lever system delivering 30 oscillations per minute
- Optional exposure interlock relay panel for safety
Applications :
- Diagnostic X-ray Machines
- Radiography Tables
- Wall-Mounted X-ray Systems
Technical Specification :
| Type | Par-Speed. |
|---|---|
| Grid Movement | 30 +/- 1 Oscillations Per Minute |
| Overall Size | 572 (22.5”) x 584 (23”) x 68 (2.68”) |
| Max. Cassette Size Accommodation | 430 (17”) x 430 (17”) |
| Grid Size | 438 (17 1/4”) x 480 (18 7/8”) |
| Grid (Optional) | 60 Lines / inch, 6:1 Ratio Minimum. |
| Exposure Time | 0.01 Sec. Minimum. |
| Bucky Top to C. Tray Top Distance | 37 +/- 2 approx |
| Input Power | 190-230 V, 50cps, Single Phase, 1.5 Amps Max. |
| Exposure Interlock Rating (Optional) | 5 Amps / 250 V AC |
| Net Weight (Approx) |
Bucky: 3.75 Kgs C. Tray: 3.0 Kgs Total: 6.75 Kgs |
| Finish |
Chassis: Super Matt Finish Black Powder Coated. C. Tray: Top Side Matt Finish Buffed. |
