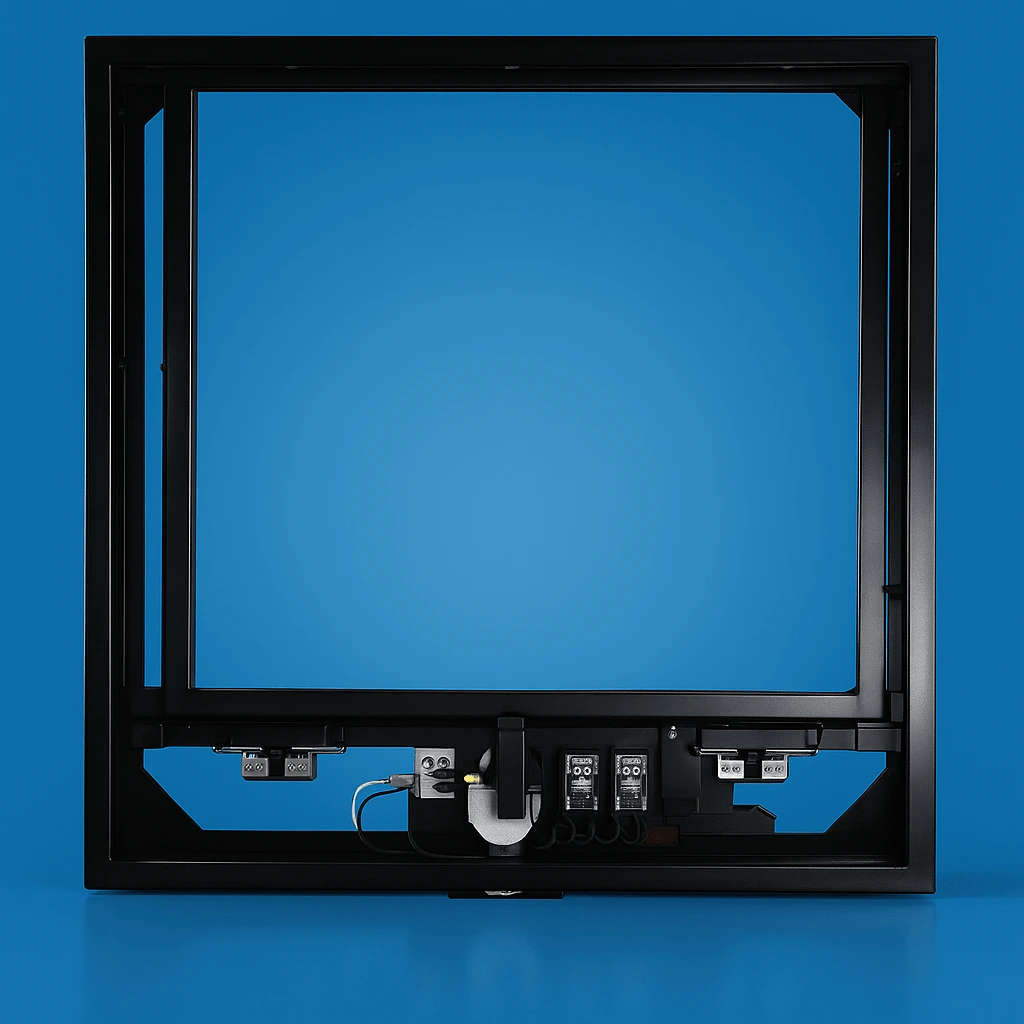

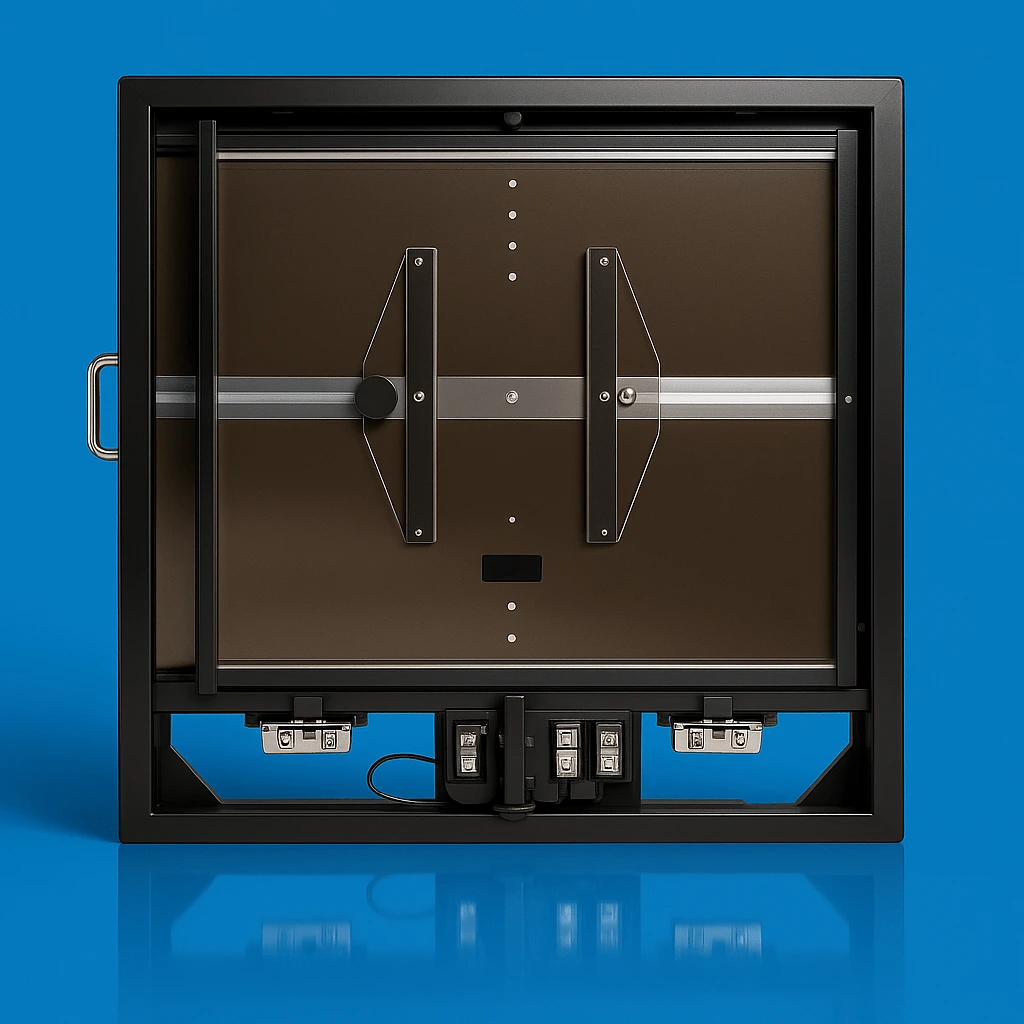

PSXB (AEC) Bucky Unit
The PSXB (AEC) Model is an upgraded version of the standard Bucky unit, equipped with an Automatic Exposure Control (AEC) slot and exposure interlock for enhanced precision in radiography. Designed for use with diagnostic X-ray machines, it holds film cassettes securely and incorporates an oscillating grid mechanism to filter out unwanted secondary rays, delivering superior X-ray image clarity.
Its smooth grid movement prevents lead strip patterns from appearing on X-ray images, ensuring high-quality diagnostic results.
Key Features :
Main Body
Grid Frame
Cassette Tray
Oscillating Mechanism
- Durable CRCA steel chassis with provision for table mounting brackets
- Lightweight, robust construction
- Pre-set guide for AEC device integration
- Smooth grid oscillation mechanism
- Nylon block mounts for firm and stable grid clamping
- Stainless steel (SS 202) with matt finish top
- Auto-centering mechanism for precise cassette positioning
- Knob lock & rubber holders for a secure grip
- Additional support block for vertical cassette placement
- Accommodates all standard cassette sizes up to 430 mm (17”) × 430 mm (17”) × 16 mm (5/8”) thick
- Front-loading tray with smooth slider operation
- Motorized lever system for 30 oscillations per minute
- Integrated exposure interlock relay panel for safety
Applications :
- Diagnostic X-ray Machines
- Radiography Tables
- Wall-Mounted X-ray Systems
Technical Specification :
| Type | Par-Speed. |
|---|---|
| Grid Movement | 30 +/- 1 Oscillations Per Minute |
| AEC Device Pre-set Guide | Front / Rear Loading Size: 6.5 Thk x 460 x 472 |
| Max. Cassette Size Accommodation | 430 (17”) x 430 (17”) |
| Grid Size | 438 (17 1/4”) x 480 (18 7/8”) |
| Grid (Optional) | 60 Lines / inch, 6:1 Ratio Minimum. |
| Exposure Time | 0.01 Sec. Minimum. |
| Bucky Top to C. Tray Top Distance | 45 +/- 2 approx |
| Input Power | 190-230 V, 50cps, Single Phase, 5 Amps Max. |
| Exposure Interlock | 5 Amps / 250 V AC (Relay contact capacity) |
| Overall Size | 615 (24.25”) x 584 (23”) x 68 (2.68”) |
| Net Weight (Approx) | Bucky with cassette tray: 8.750 Kg |
| Finish |
Body & Grid Frame: Black Matt Finish Powder Coat. C. Tray: Top Side Matt Finish Buffed. |
