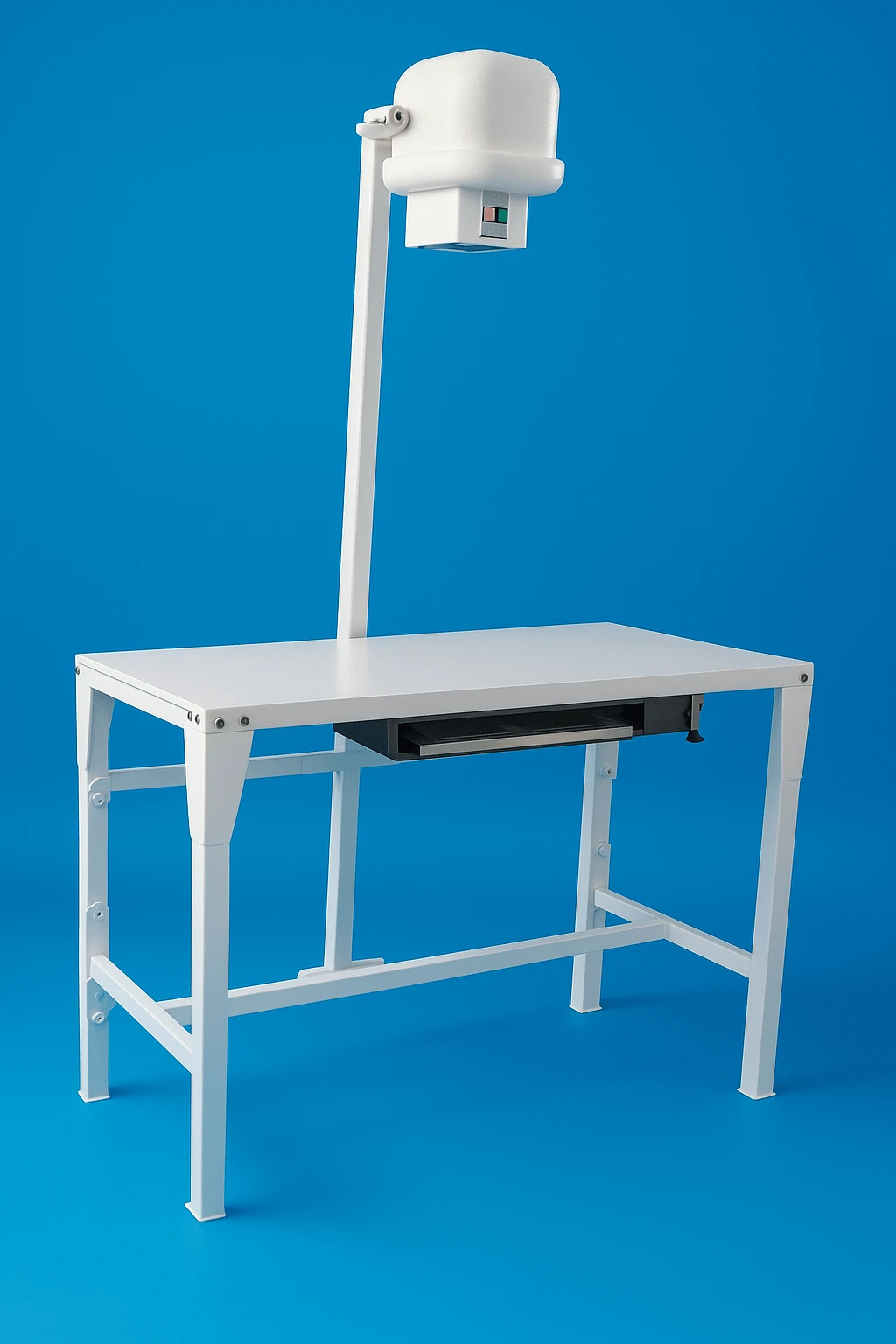

X-Ray Veterinary Unit (VET-X)
The VET-X is a cost-effective, space-saving radiographic unit designed specifically for veterinary applications. Tailored for small animal veterinarians, it offers maximum imaging coverage while requiring minimal installation space.
Key Features :
- Veterinary-specific design – ideal for small animal imaging.
- Compact and space-efficient – fits well in clinics with limited space.
- Convenient tabletop height for easy patient positioning.
- Centre line marking for precise animal alignment.
- Smooth and effortless Bucky & column movement along the table length.
- Mechanical lock system (electromagnetic optional) for secure positioning.
- Durable steel frame with aluminium angles for added strength.
Applications :
- Small animal veterinary clinics
- Specialized pet hospitals
- Mobile veterinary imaging setups
- Research and wildlife rehabilitation centers
Technical Specification :
| Category | Details |
|---|---|
| Table Top | |
| Material | White Laminated Sheet 8 mm |
| Table top to Film distance | 85 mm |
| Table top dimensions | 1830 L x 600 W (mm) |
| Table Top Radiolucent Area | 1750 x 540 (mm) |
| Maximum Load | 100 Kg |
| Bucky Device Unit | |
| Reciprocating | Motor & Lever mechanism |
| Max. Cassette Accommodation | Max 43 cm (17”) x 43 cm (17”) |
| Electrical requirement | Single Phase 230V +/- 10%, 50/60 Hz |
| Grid (Standard) | 17 1/4 x 18 7/8 60 Lines 6:1 Ratio |
| Longitudinal Bucky Travel | 505 mm (20”) |
| Locks | Mechanical (Electromagnetic optional) |
| Tube Stand | |
| Tube Column | Integrated Table & Tube Stand |
| Tube Column Height | 1856 mm (73”) |
| Longitudinal Column Travel | 920 mm (36”) |
| Source to Image Distance | 40” Fixed |
| Dimension & Weight | |
| Dimensions | 1830 L x 620 W x 655 H (mm) |
| Weight | Approx. Kg |
