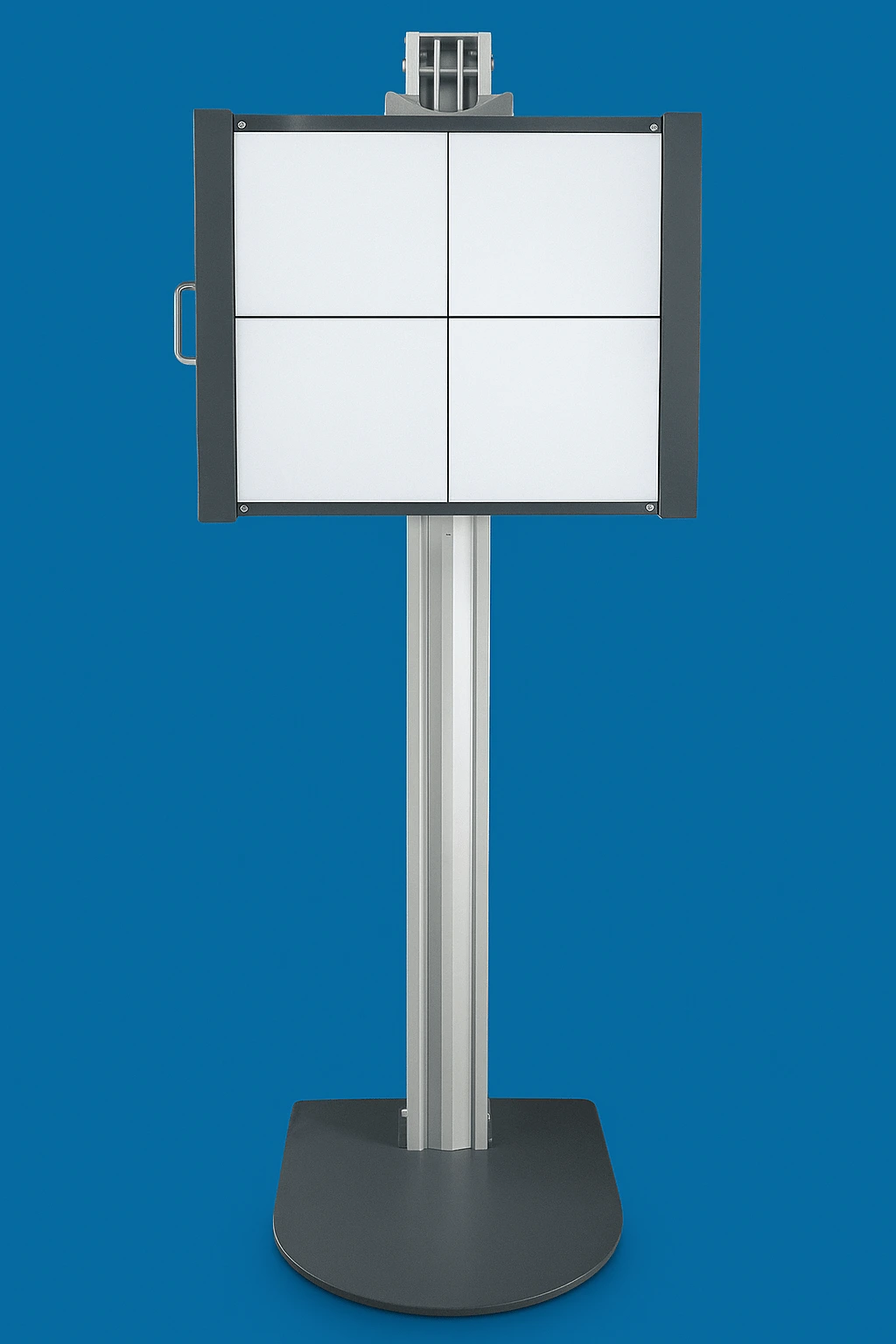

X-Ray Vertical Bucky Stand – Model VBXS
The VBXS is a cost-effective, compact, and versatile radiographic wall stand designed for quick and simple upright X-ray imaging. Ideal for both standing and seated patients, it is floor/wall-mounted to suit a wide range of radiology departments, clinics, and diagnostic centers.
Its fully counterbalanced vertical movement ensures smooth and effortless positioning at any height, while its robust build guarantees reliability for routine imaging tasks.
Key Features :
- Fully counterbalanced design for easy vertical adjustment.
- Smooth, manual operation for height positioning.
- Integrated chin recess for comfortable patient positioning.
- Quick installation – ready to operate in any radiology setup.
- Bucky loadable from both sides (left or right).

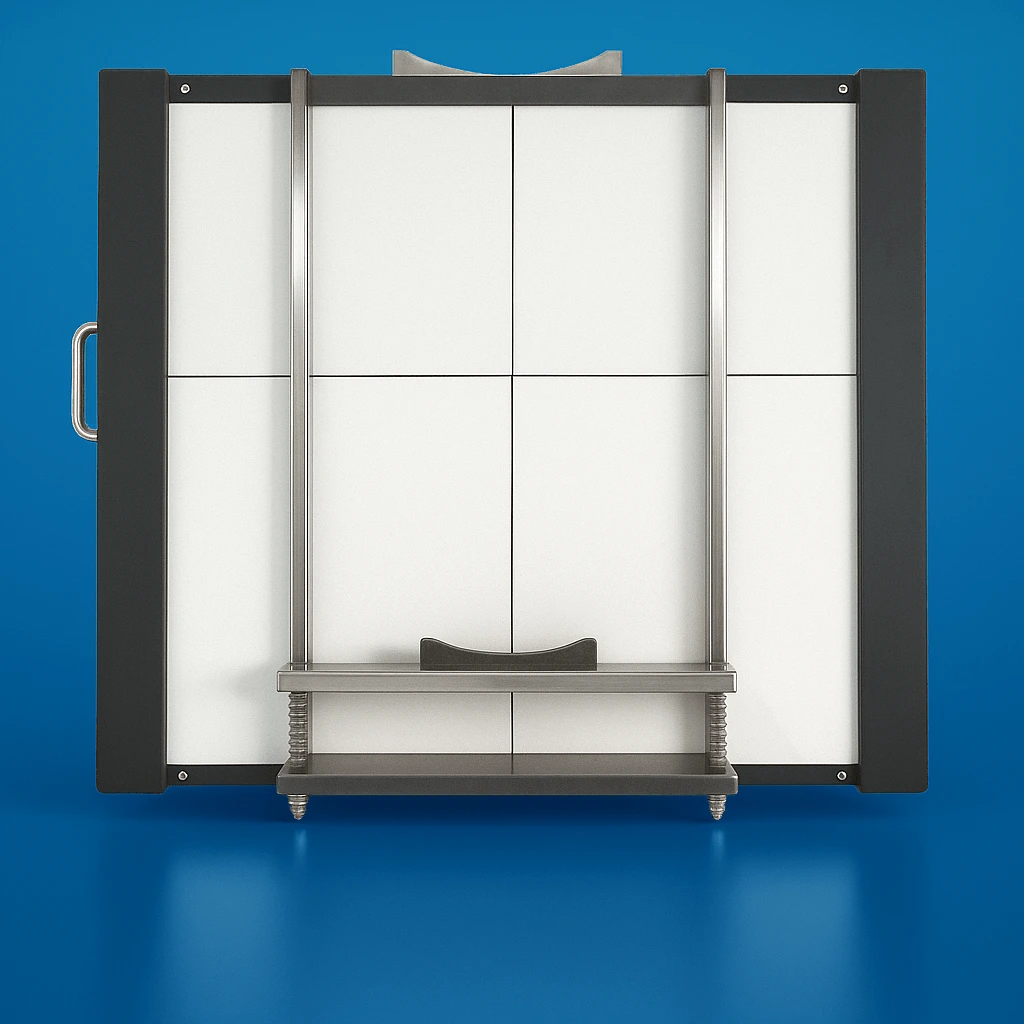

- Optional cassette holder for non-Bucky X-ray use.
Applications :
- Routine upright radiography
- Standing and seated patient imaging
- Hospital radiology departments
- Diagnostic centers and clinics
Technical Specification :
| Model | VBXS |
|---|---|
| Standard Type | Non-tilting Bucky |
| Bucky | Par Speed |
| Grid (Standard) | 17 1/4 × 18 7/8 85 Lines 8:1 Ratio FD 150 cm |
| Max. Cassette Accommodation | 43 cm (17”) × 43 cm (17”) |
| Vertical Bucky Travel | 137 cm (from 38 to 175 cm) |
| Film Centre to floor min. distance | 38 cm |
| Front top to film distance | Approx 4 cm |
| Vertical movement | Manual, Fully counterbalanced. |
| Locks | Mechanical Breaks. (Electromagnetic optional) |
| Electrical requirement | Single Phase 230V +/- 10%, 50/60 Hz |
| Dimension | 620 W × 625 D × 2050 H (mm) |
| Weight | Approx 75 Kg |
